Under the hood of a vehicle, the air intake system allows air to reach the engine – a key part of the combustion process.
Different parts make up this system, including the throttle body.
If your dream is to be an auto mechanic, you need to know how engines work. That includes understanding the critical functions of a throttle body through and through.
Continue reading to find out more about how the throttle body works and its importance to modern vehicles!
Key Summary Points
- The air intake system in a vehicle allows air to reach the engine, and the throttle body is a component of this system.
- The throttle body contains a throttle plate that opens and closes to control the airflow into the engine.
- The location of the throttle body depends on the vehicle's engine type, with older models having it built into the carburetor and newer models having it between the intake manifold and air filter.
- A throttle body spacer can be added to increase the amount of airflow into the engine, potentially improving horsepower and fuel economy.
- Signs of a failing throttle body include dirt buildup, poor idling, uneven acceleration, leaks and electrical problems. It is important to have these issues addressed by a trained technician.
What Does a Throttle Body Do?
Function of throttle body

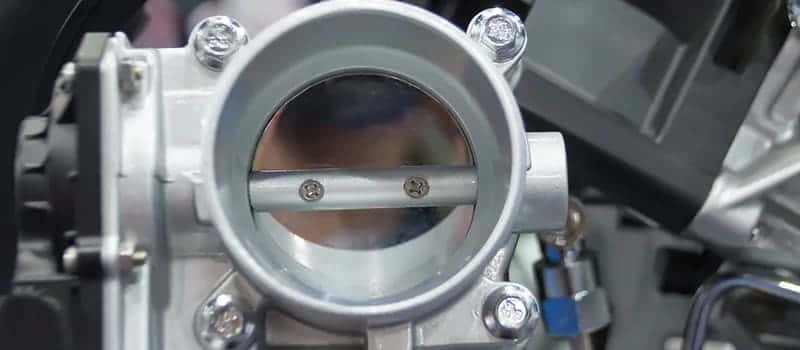

Within the air intake system, a housing unit contains a throttle body component called the throttle plate, also known as a butterfly valve. This plate rotates on a shaft.
When a driver steps on the gas pedal, the throttle plate opens to allow air into the engine. When the pedal is released, the valve closes. This chokes — or throttles — the airflow in the combustion chamber, which helps control the speed of the engine.
Locations of the throttle body
The throttle body can be found in different areas, depending on a vehicle’s engine type.
1. Directly in the carburetor: mostly applies to older models, used for fuel injection.
2. Between the intake manifold and the air filter: In late-model fuel-injected engines, the throttle body is connected mechanically to the gas pedal via wire/cable.
Most engines feature electronic fuel injection. In this case, a throttle position sensor sends a signal to the electronic control unit (ECU) when the driver steps on the gas pedal. This prompts the airflow sensor to communicate with the computer as well, increasing the amount of fuel the injectors provide.
What does a throttle body spacer do?
A part that some car owners like to add to their throttle body system is a throttle body spacer — a small metal circle typically installed between the air intake and the throttle body itself. This part is used to change the amount of airflow going into the intake manifold.
Image credit: Summit Racing Equipment
A throttle body spacer maximizes the amount of airflow to the engine by allowing in more air than usual. The goal is to increase the engine’s horsepower and fuel economy.
This increase in airflow and velocity can make engine operation more efficient and prevent it from working so hard, which can result in better automotive performance.
Read: What Is a Catalytic Converter and What Does It Do?
Signs That a Throttle Body Is Wearing Out
Like any other part, throttle body system components can start to wear out and experience issues. It’s important to pay attention to possible warning signs and get problems taken care of as soon as possible.
Signs of a failing throttle body part include:
- Dirt and other buildup: The housing of the throttle body can start to accumulate dirt and other deposits, which can cause the air/fuel flow to become interrupted.
- Poor idling: A common sign that a throttle body is operating poorly or lower-than-normal is idling. This means the vehicle stalls when pressing the gas pedal rapidly or after coming to a stop.
- Uneven acceleration: Air and fuel gets released into the engine when you press on the gas pedal, but a worn throttle body could prevent the engine from getting the power it needs. If your car is taking longer to gather speed, it could be a throttle body issue.
- Leaks: The air/fuel flow can get disrupted from vacuum leaks, which can be caused by a throttle stop that’s wearing down or isn’t adjusted properly.
- Electrical problems: Connection problems with the throttle body sensor can cause communication issues with the ECU, which results in a drop in power.
Be sure to take your vehicle to a trained technician to determine the source of the problem and get things running properly again!
Throttle Body FAQs
1. Can you explain the purpose of a throttle body in a vehicle's engine?
The throttle body regulates the amount of air entering the engine, which is crucial for maintaining the proper air-fuel mixture needed for combustion. By controlling the airflow, it directly impacts the engine's power and speed.
2. What are the main components of a throttle body?
The primary throttle body parts include the throttle plate or butterfly valve, the housing unit and the throttle position sensor. These elements work together to manage airflow and communicate with the vehicle's ECU.
3. How does a throttle body control the airflow in an engine?
The throttle body controls airflow by adjusting the throttle plate. When the gas pedal is pressed, the throttle plate opens to allow more air into the engine. When the pedal is released, the plate closes, restricting airflow.
4. What are the symptoms of a faulty throttle body?
Symptoms of a faulty throttle body include poor idling, uneven acceleration and an accumulation of dirt in the throttle body's housing. In some cases, there may also be vacuum leaks or electrical problems affecting the throttle position sensor.
5. Can a dirty throttle body affect the performance of a car?
Yes, a dirty throttle body can affect a car's performance by interrupting the air/fuel flow, leading to issues like poor idling and decreased acceleration. Cleaning the throttle body can help restore normal function and improve overall engine performance.
